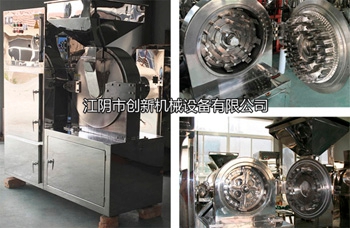

WF-B series multifunctional pulverizer


Details:
Main Uses:
This machine is mainly used in chemical, medicine (TCM), food, spices, resin powder, powder coating and high temperature material substances weak.

Working Principle:
The movement of the unit adopts the relative movement between the fixed gear tooth plate and the tooth plate, so that the material is impacted, rubbed and squeezed by the tooth plate. Good materials will automatically enter the collection bag after being crushed by rotating centrifugal force, and dust bags will be recovered from the vacuum box. And can improve the material utilization rate and reduce the cost.

Technical Parameters:
Model 180B Type 20B Type 30B Type 40B Type 50B Type 60B Type
Capacity (kg / g) 40-120 60-150 100-300 160-800 300-1000 400-1500
Spindle speed (r / min) 4500 4500 3800 3400 3300 2800
Feed size (mm) 10 10 12 12 12 12
Grinding fineness (mesh) 12-120
Smashing motor (kw) 3 4 5.5 7.5 15 18.5
Vacuum Motor (kw) 0.55 0.55 0.75 1.1 1.5 1.5
Dimensions(L × w× h) 800×600×1450 900×650×1600 1150×700×1650 1300×900×1700 1450×950×1750 1700×900×1850
