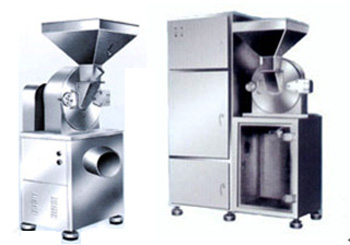

FL Air-cooled pulverizer


Detailed description:


Working principle:

air-cooled mill with the wind wheel type high speed rotating knives, cutting and impact of fixed grinding, grinding time cavity has a strong airflow, heat and finished products of the crushing chamber together from screen, the particle size can be obtained by changing the screen.

Scope of application:

air-cooled crusher is widely used in material crushing in pharmaceutical, foodstuff and chemical industry, etc.

Advantages:

1. crushing the interior wind wheel type high-speed rotary knives, air volume is big, machine cavity                       itself machine cavity is not easy to fever.

2. air-cooled crusher has stable running, easy disassembling and cleaning, low noise, good crushing effect.


Technical Parameters:

Model

Production capacity(kg/h)

Spindle speed(r/min)

Feed particle size(mm)

Grinding fineness(mm)

Motor power(kw)

Overall dimensions

(length * width * height)(mm)

Weight

20B

60-150

4500

6

60-150

4

950*550*1250

200

30B

100-300

3800

10

60-120

5.5

1150*650*1550

300

40B

160-800

3400

12

60-120

7.5

1200*700*1650

420

60B

500-1500

2800

15

60-120

11

1350*850*1680

620
