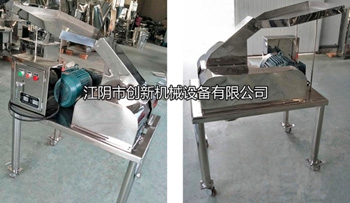

GFSJ Pulverizer


Main Uses :
The machine adopts the mixed powder method developed from principles of design for the pharmaceutical, food, chemical industry, and used widely.

Features :

The machine has a simple structure and is easy to disassemble, assemble and clean the grinding chamber. The grinding chamber is located in contact with materials. It is made of stainless steel and can resist acid and corrosion, so that the crushed materials can better meet the hygiene requirements. The machine is stable in operation, convenient to move, low in noise, good in grinding effect and low in power consumption.

Working Principle :
The machine is a high speed machine, with fast port side edge, the other side of the impulse blade, bringing the powder as obtained by high shear grinding blade. The machine can also be selected according to different materials of various shapes and sizes with different blades, grain size, or transfer by replacing the mesh is speed access.

Technical Parameters :
Model 8 16 32
Motor Power (kw) 3 7.5 11
Capacity (kg / h) 10-100 50-300 100-550
Product fineness (mesh) 12-120 12-120 12-120
Dimensions (L × W × H) 1050×600×1600mm 1100×860×1520mm 1280×950×1600mm
Weight (kg) 150 250 320
